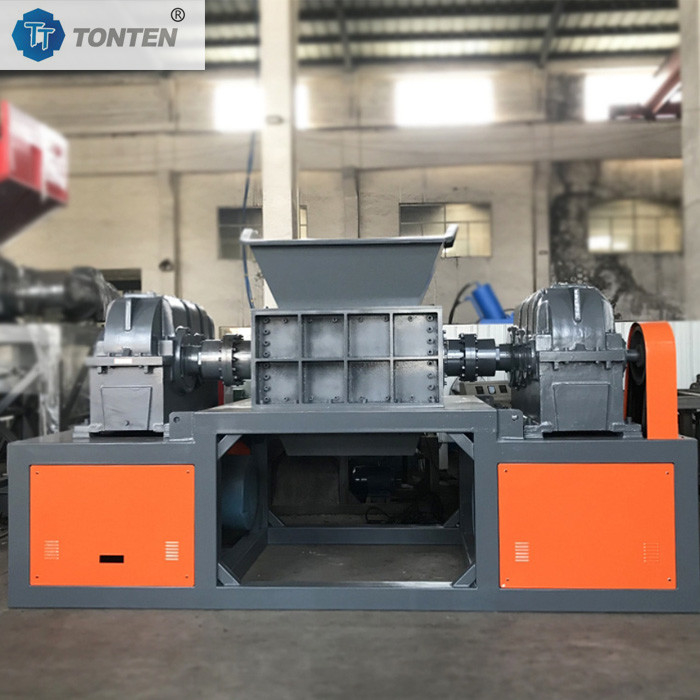

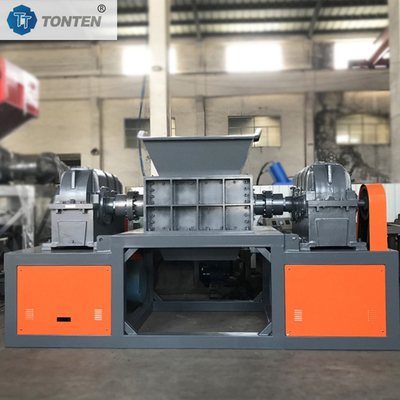

Woven Bag Double Shaft Shredder Shredding Old Cloth Wood Machine
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | TONTEN |
| Nomor model: | TT-S1000 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | Dapat dinegosiasikan |
| Kemasan rincian: | Model kecil dikemas dalam kotak kayu, model besar dimuat dalam wadah |
| Waktu pengiriman: | 7-10 hari kerja |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 20 set per bulan |
|
Informasi Detail |
|||
| Daya motor: | 30kw | Jumlah bilah penghancur: | 20 buah |
|---|---|---|---|
| Ukuran Port Umpan: | 1000x800mm | Bahan tubuh: | Baja karbon |
| Mode drive: | Penggerak motor ganda | Bahan yang berlaku: | Kayu tenun kayu kain tua |
| Ukuran: | 3000x2000x2000mm | Nama model: | Merobek penghancur poros ganda |
| Menyoroti: | woven bag shredding machine,double shaft cloth shredder,wood shredding crusher machine |
||
Deskripsi Produk
Woven Bag Double Shaft Shredder Shredding Old Cloth Wood Machine
Structural Features:
Dual-Shaft Design: Utilizing two parallel rotating shafts, a dual-shaft shredder provides more uniform shredding, reducing material clogging and stagnation.
Blade System: Equipped with multiple shredder blades, typically made of high-alloy steel for high strength and wear resistance. The rational arrangement of the blades ensures effective shredding of a wide variety of materials.
Body Structure: The body is typically constructed of heavy-duty carbon steel, ensuring stability and durability under high loads.
Power System: Dual-shaft shredders are equipped with dual motors, providing powerful power and ensuring efficient and fast shredding.
Feed Inlet: The wide feed inlet, typically measuring 1000 x 800 mm, facilitates material input and accommodates a wide variety of materials.
Control System: Dual-shaft shredders are equipped with a PLC automatic control system, enabling automated operation and enhancing user convenience and safety.
Cooling System: Air or water cooling is used to prevent damage from overheating during extended operation.
Safety: Multiple safety features ensure operator safety.
Workflow:
Material Preparation: Place the material to be shredded into the feed port, ensuring that the material size is suitable for the machine.
Starting the Machine: Start the motor, the machine begins operation, and the dual shafts begin rotating.
Shredding Process: The material enters the shredding chamber of the dual shaft shredder, where the dual shaft blades tear and shear the material, gradually breaking it into smaller pieces.
Material Discharge: The shredded material is discharged through the discharge port, typically for further processing on a conveyor belt or other equipment.
Monitoring and Adjustment: The operator can monitor the machine status through the control panel and perform adjustments and maintenance as necessary.
Cleaning and Maintenance: Regularly clean and maintain the dual shaft shredder to ensure long-term stable operation.
Double shaft shredder specification:
|
Model type |
Dimension size(mm) |
Feed size(mm) |
Blads(mm) |
Motor power(kw) |
Weight(kg) |
|
TT-S600 |
2300x1500x1620 |
600X460 |
200 |
11×2 |
1580 |
|
TT-S800 |
2820×1600×2050 |
800X720 |
260 |
15×2 |
3500 |
|
TT-S1000 |
3300×1900×2200 |
1000×800 |
300 |
22×2 |
5000 |
|
TT-S1200 |
3500×2000×2500 |
1200×980 |
320 |
30×2 |
6200 |
|
TT-S1500 |
4100×2260×2800 |
1500×1000 |
550 |
55×2 |
7000 |
|
TT-S1600 |
5800×2400×3300 |
1800×1206 |
560 |
75×2 |
7500 |
|
TT-S1800 |
6100×2700×3500 |
2000×1490 |
600 |
90×2 |
8900 |

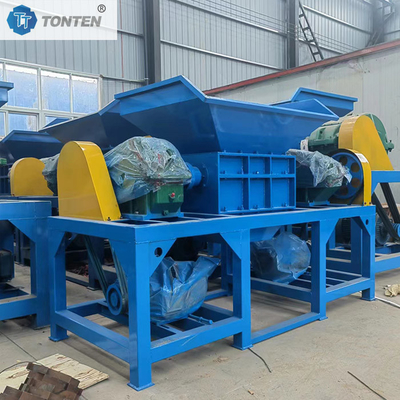

Shredder machine workshop:
